Heat Exchanger Introduction
|
Working Principal
The material enter into the equipment, across the cooling plate
due to gravity, the heat
will be taken away by the coolant medium
(water)
.
The advantage is free dust in process, high heat
transfer efficiency,
environmental friendly,
low power and energy saving. It can
help
to replace fluidized bed cooler and drum cooling machine.
Equipment Constitute
-
The inlet--material inlet;
-

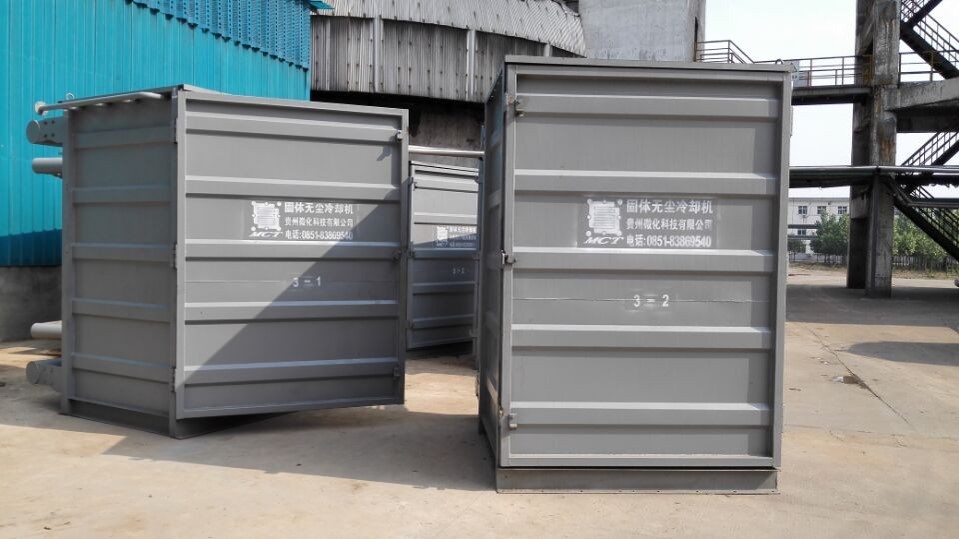

Cooling crate--core parts, use special welding
production process;
-
The outlet--special design, stable flowrate rate and
temperature control;
-
Control system--inlet/ outlet temperature control,
make sure the cooling efficiency.
|
Leading with Quality, Performance and Cost
Our partners, the Micro-Chemical
Technology is a high-tech enterprise that focuses on research
and production of the Micro Reactor & Heat Exchanger with
independent intellectual properties, that based on the
integration and refining of the global research and engineering
practice.
Our main equipments is for mixing, reacting, synthesizing,
extracting process in the chemical production technologies, in
the fields like phosphorus chemical industry, petroleum chemical
industry, fine chemicals and so on.
We also have advanced technology on dust-free cooling equipment
of solid particles, powder materials.
http://www.microreact.cn/
http://www.gzfte.com/
|
SCHE
Heat Exchanger
SCHR
Heat Exchanger/Reactor
SCHC
Heat Exchanger/Condenser
SCGG
Gas-gas Heat Exchanger
SCLG
Liquid-gas
Heat Exchanger
|
Equipment advantage
Stable cooling temperature control.
the difference between material cooling
temperature
and
coolant temperature is around
& 5-8 ℃.
Non influence from external
humidity;
Only 10-15% of the conventional
equipment.
Free exhaust gas discharge, no need
extra gas
removal facilities.
Simple structure, easy to reform.
Static equipment, less maintenance
cost.
low running cost, more energy
saving.
|
|
|
Expense Comparison-- Equipment/p>
SN |
Item |
Heat Exchanger(10,000) |
Tradition Equipment |
Remark |
|
1 |
Fan |
0 |
8 |
40,000 m³ |
2 |
Baghouse |
0 |
30 |
40,000 m³ |
3 |
Cooling Tower |
10 |
0 |
40m³ |
4 |
Scrubber |
0 |
10 |
|
5 |
Chimney |
0 |
5 |
|
Total |
|
10 |
53 |
|
Expense Comparison--Installation
SN |
Item |
Heat
Exchanger(10,000) |
Tradition
Equipment |
Remark |
|
1 |
Equipment Installation |
3 |
15 |
|
2 |
Basic
Equipment |
0.8 |
6 |
|
3 |
Pipeline |
1 |
5 |
|
4 |
Feet |
1.2 |
12 |
600/Sqm |
Total |
|
6 |
38 |
|
Expense
Comparison--Maintenance
SN |
Item |
Heat Exchanger(10,000) |
Tradition Equipment |
Remark |
1 |
Power(Kw) |
15 |
100 |
|
2 |
Annual Electricity Cost |
6 |
40 |
8000h,0.5
per degree |
3 |
Repair |
0.5 |
5 |
|
Total |
|
6.5 |
45 |
|
|
|
|
